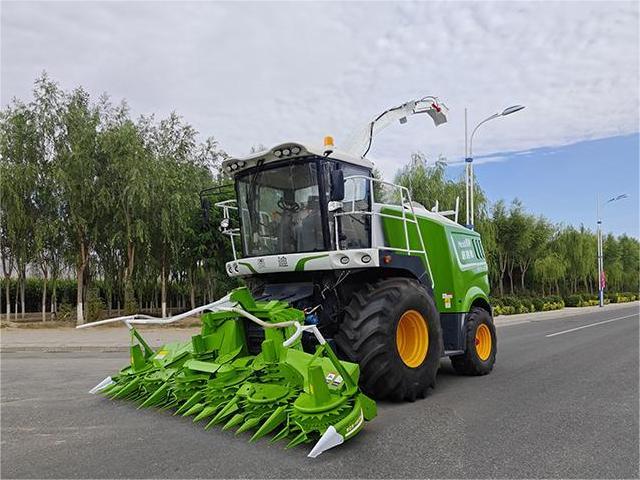

9QS-4500S
添加时间：2025-01-07
Faced with the fast-developed animal husbandry, the harvest time of silage gradually becomes concentrated and shortened in pastures; as a result, higher requirement for the efficiency of the green feed harvester has been raised. Given this, MElDl S Series Green Feed Harvester provides a solution for the above requirement,which gives customers greater gains and returns by virtue of wider cutting width, larger main machine horsepower,stronger power and higher harvest efficiency.

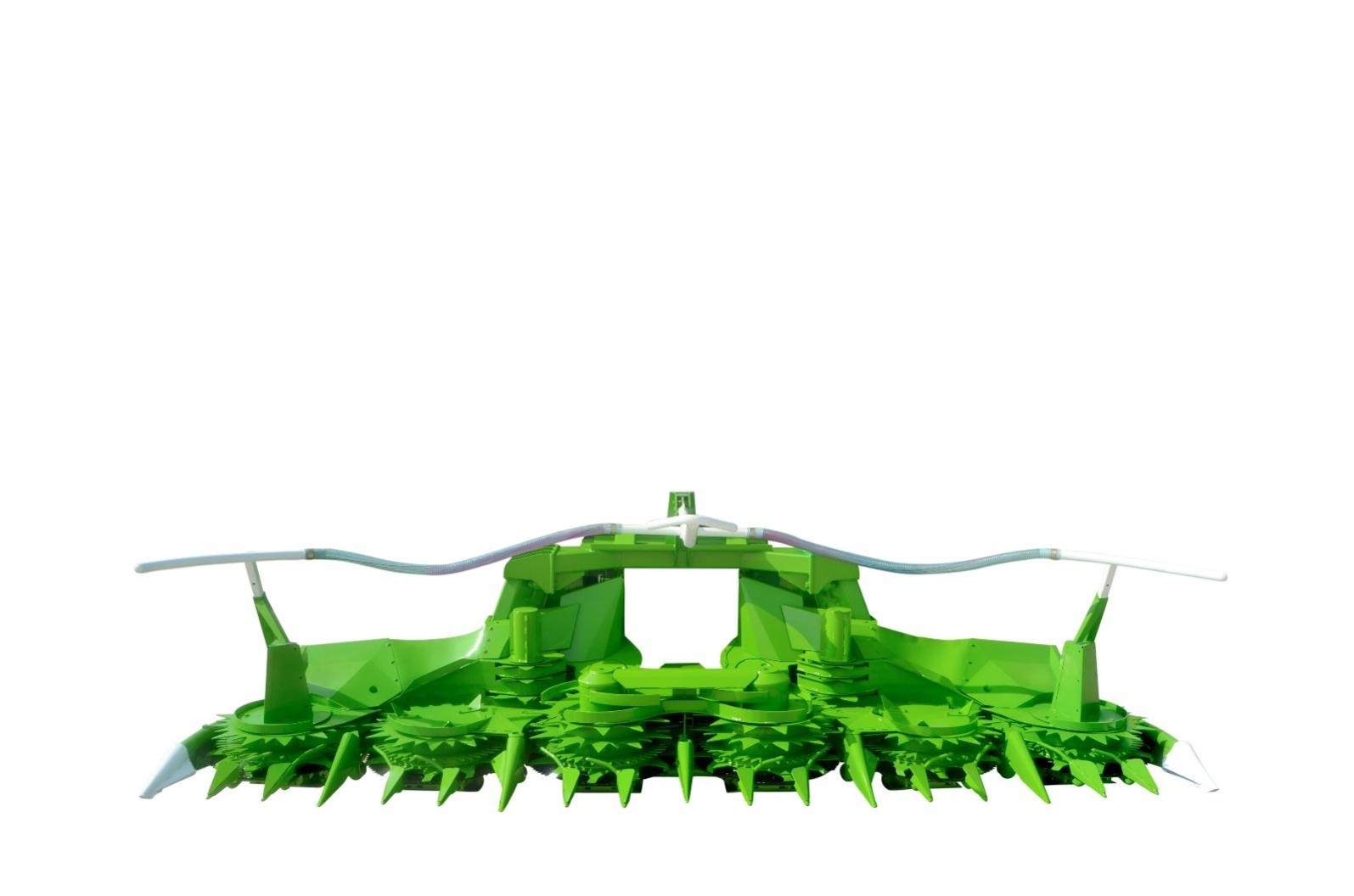

4.5-meter header
The working width of the header is 4,427 mm, and the folding width is 2,870 mm. The six cutter discs operate at high speed with high stability, and are suitable for high and low straws as well as unrowed crops. They can cut quickly and thoroughly without being affected by weeds.

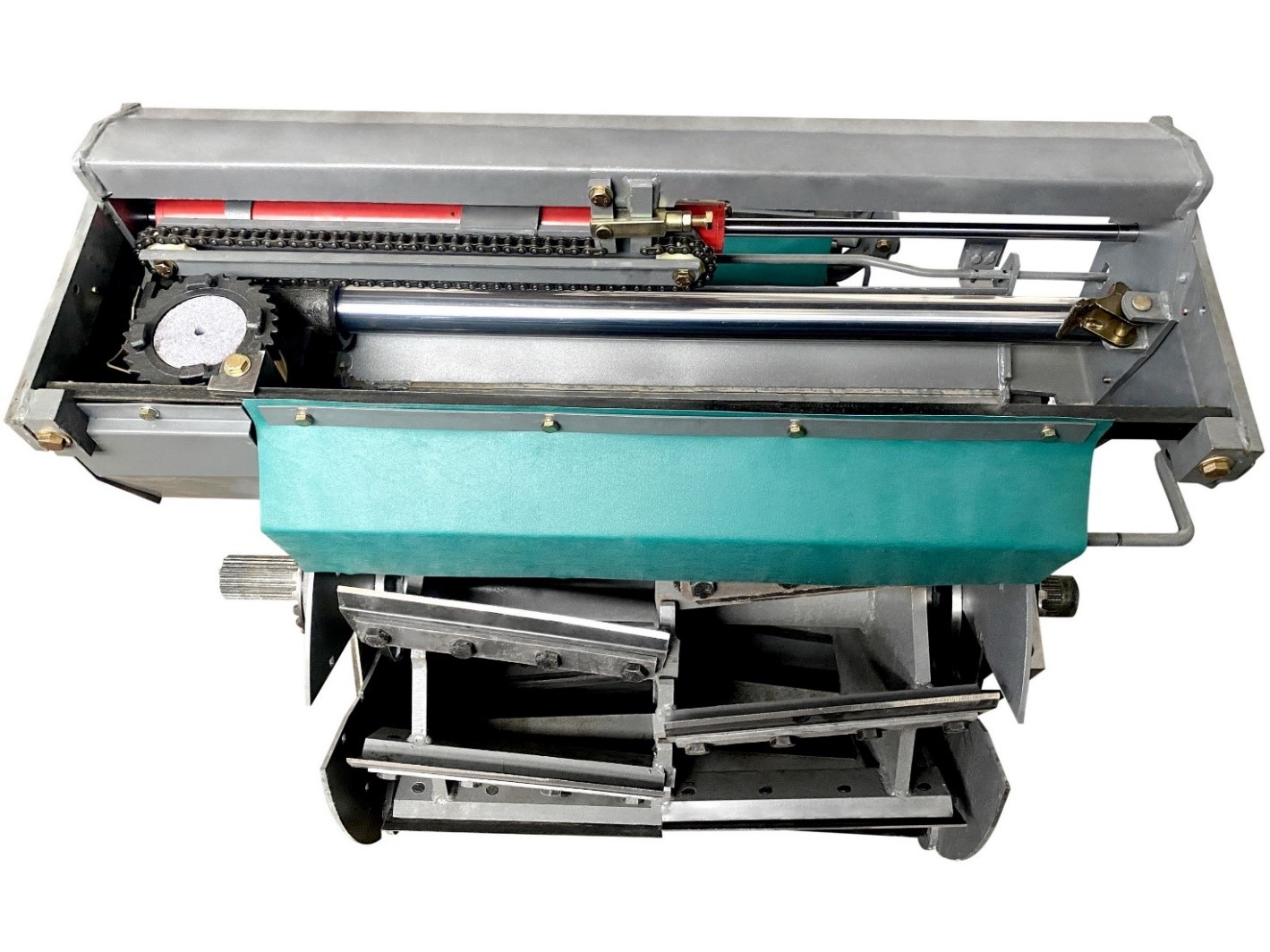

Automatic Knife Sharpening
The electric control and hydraulic device for automatic sharpening is equipped,which makes the operation is quick andconvenient and ensures the chopping knife is sharp
continuously.

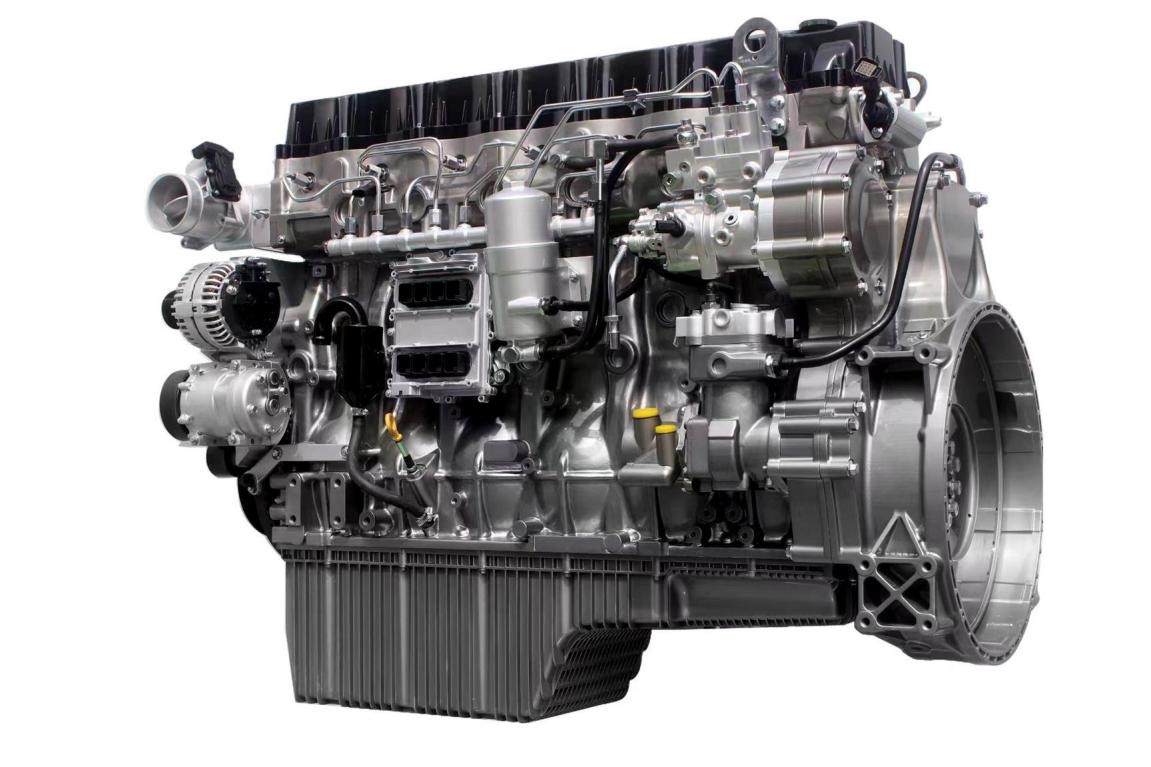

Engine
Equipped with 530 HP well-known brand engine which provides larger torque,stronger power, and faster load transient response; and the advanced water tank cooling and dust removal system not only ensure the working of the engine,also reduce the maintenance time of water tank cleaning.
Grain Crushing System
Perform heat treatment process and adopt special material for the roller grain crusher to make it durable and thecrushing rate reach over 97%.
| Technical Parameters | |
|---|---|
|
Model 9QS-4500S |
|
| Type | Self-propelled |
| Header working width | 4450 mm |
| Overall dimension under working state (L×W×H) | 7920×4650×6000 mm |
| Theoretical chopping length |
Gear 1:Short 6;Long 8 Gear 2:Short 11;Long 14 Gear 3:Short 18;Long 22 |
| Engine power | 390kW/530ps |
| Rated engine speed | 1900 r/min |
| Chopping drum speed | 1140 r/min |
| Header cutting type | Disk-type cutting knife |
| Type of straw chopping mechanism | Roller type |
| Number of moving cutter | 20 pieces |
| Harvest efficiency | ≥28 kg/s |
| Stubble height | ≤150 mm |
| Throwing angle | ±90 degrees |
| Wheel base | 2860mm |
| Loss rate | ≤3% |
| Drive travelling | Hydraulic drive |
| Brake type | Disk type |
| Drive wheel tread (front) | 2570mm |
| Guide wheel tread (rear) | 2505mm |
| Tire specification of drive wheel (front) | 800/65R26 |
| Tire specification of guide wheel(rear) | 19.5L-24 |
| Operating speed | 2-10km/h |
