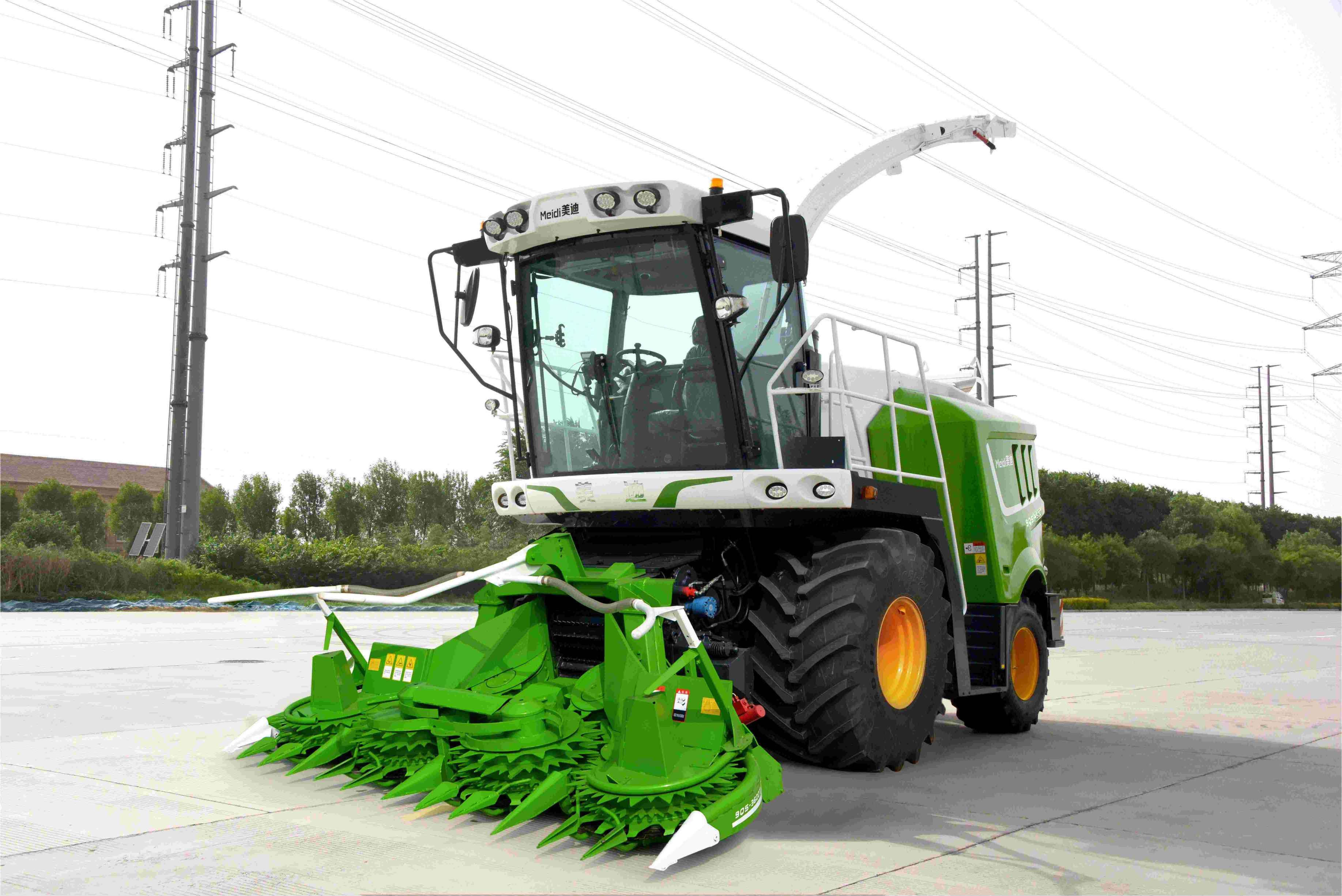

Meidi 9QS-3600T Self-propelled Green Feed Harvester is a brand-newly designed high-end intelligent large-scale silage harvester, with a new main machine layout in which there is a large internal space for easier maintenance and caring; a header with a cutting width of 3.6m and a 480 HP engine are equipped for easy harvest of high-yield silage corn; the corn slicing and crushing effect can be on a par with imported machine by the new-type chopping hobbing cutter and grain crusher with a larger diameter; the spacious cab equipped with A/C make the working environment more comfortable; multi-functional armrest box and control handle can control the harvest working easily. 2024 Meidi Green Feed Harvester is trustworthy with advanced and reliable technology and excellent harvest quality.

Products Configuration

Automatic Knife Sharpening: The electric control and hydraulic device for automatic sharpening is equipped, which makes the operation quick and convenient and ensures the chopping knife is sharp continuously.

Header: The transfer driving is more convenient due to the foldable header width.

Detection System: The Beidou intelligent positioning detection system can real-time monitor the current position and working status of the machine remotely.
Radial Tire: The robust front axle is equipped with wider radical tire; thus,there is better traction and trafficability,and the soil compaction is effectively reduced at the same time.

Cab: The spacious cab with A/C helps the driver in the field work to escape from the heat; the front curved glass window provides the driver a wider visibility; shock-absorbing seat matching with multi-functional handle make the driver control the harvest working easily.

Technical Parameters
Model　　　　　　　　　　　　　　　　　　 9QS-3600T
Type	Self-propelled
Header working width	3520 mm
Overall dimension under working state(L×W×H)	8010×3710×5870 　 mm
Theoretical chopping length	Gear 1:Short 6;Long 8 Gear 2:Short 11;Long 14 Gear 3:Short 18;Long 22
Engine power	353kW/480 ps
Rated engine speed	1900 r/min
Chopping drum speed	1140 r/min
Header cutting type	Disk-type cutting knife
Type of straw chopping mechanism	Roller type
Number of moving cutter	20 pieces
Harvest efficiency	≥17 kg/s
Stubble height	≤150 mm
Throwing angle	±90 degrees
Wheel base	2710mm
Loss rate	≤3%
Drive travelling	Hydraulic drive
Brake type	Disk type
Drive wheel tread (front)	2400mm
Guide wheel tread (rear)	2110mm
Tire specification of drive wheel (front)	750/65R26
Tire specification of guide wheel(rear)	500/60-22.5
Operating speed	2-10km/h

Operation Photo
